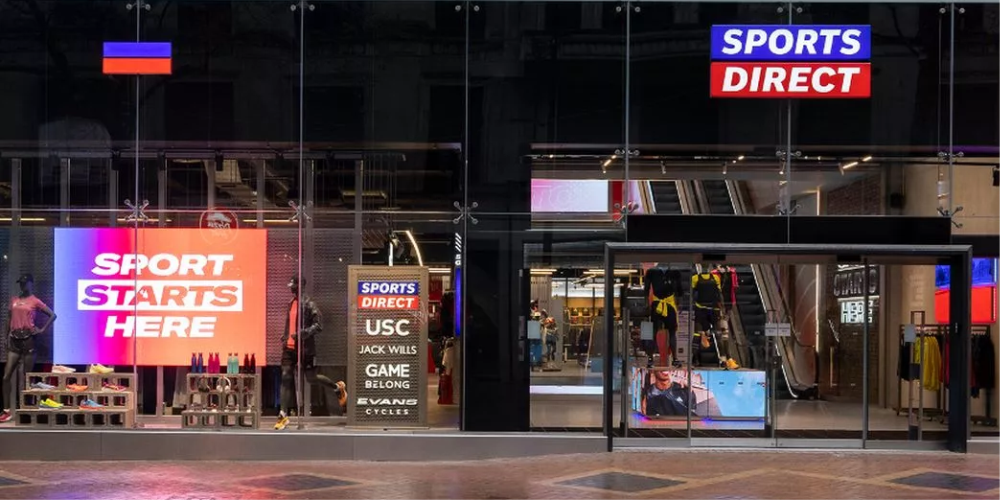

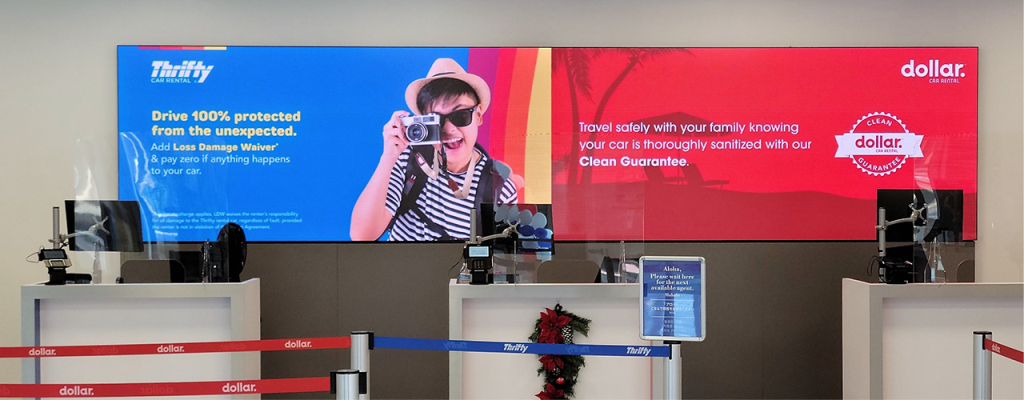

Replacing LCD with Direct View Small Pitch LED digital signage for window display.We help retailers turn storefronts into high-impact digital experiences.Traditional LCD signage struggles under sunlight, wears out quickly, and limits visibility.
When thinking about Video Display technology the major choice you will be faced with is whether Direct View small pitch LED or LCD is the way to go. Both have their unique advantages and strengths depending on your requirements, expectations and resources.
Multi-Screen
Synchronisation
High brightness
Sunlight-readable
Direct View Small Pitch
LED Technology
We accept
1 piece small order
| Pixel Pitch | P0.93 | P1.25 | P1.53 | P1.667 | P1.86 | P2 |
| Encapsulation | SMD | SMD | SMD | SMD | SMD | SMD |
| Module size WxH | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm |
| resolution ratio | 344x172dots | 256x128dots | 208x104dots | 192x96dots | 172x86dots | 160x80dots |
| Brightness(nits) | 600 | 700 | 700 | 700 | 700 | 700 |
| Best Viewing distance | 0.9m～15m (3 ~49ft) | 1.2m～15m (4~49ft) | 1.5m～20m (5~66ft) | 1.6m～25m (5.5~82ft) | 1.8m～25m (6~82ft) | 2m～25m (6.6~82ft) |
| Driving method scan | 1/44scan | 1/64scan | 1/52scan | 1/48scan | 1/43scan | 1/40scan |
Boasts unprecedented visual performance and stability by expanding its industry-leading display technology to LED signage. We also has a variety of lineups to offer customized solutions in the indoor/outdoor environment.
Between each module and cabinet there are no seams across the entire display, creating a seamless display.
Fill any space thanks to the smaller cabinet sizes and modular design, is not bound to 16:9 aspect ratio.
Both indoor and outdoor options available.
Ultra high contrast ratios achieve true blacks and an unbelievable colour range.
Bespoke installation required.
Robust, rugged enclosures.
Unbelievable levels of brightness can be achieved, ideal for outdoor applications that need to compete with the sun.
Can be accessed from front or rear making maintenance flexible and simple.
100,000 hours lifetime.
Between each panel there is an ultra-narrow bezel that can be as thin as 0.8mm screen to screen.
As standard come in a fixed 16:9 aspect ratio, ideal for displaying High Definition content but more limiting.
Can only be used for indoor applications.
Smaller pixel pitch can potentially produce higher resolutions, depending on content and media player.
More user friendly hardware.
Very fragile LCD panels can be damaged easily during installation.
Designed specifically for indoor use so not available in high brightness.
Typically use pop-out wall mounts for serviceability.
70,000 hours lifetime.
Direct-view LED display have been widely used in many fields due to their advantages of high brightness, high contrast, high refresh rate, energy saving, and environmental protection.
It can be used to improve the customer experience, increase brand awareness, and drive sales.
Easily update, manage and publish your Direct View Small Pitch LED digital signage content from any PC or mobile device at anytime, any where. Pre-schedule content on your LED screens to automatically play on specific dates and times.No matter how many locations or screens you have, update them all at the same time from an easy-to-use web portal
Mini & COB LED displays deliver a stunning LED display solution
that ensures your message is communicated in vivid detail,
brightness, and color. Available in sizes ranging from
43″ – 98″ to fit any space
It can be customized to meet your needs. Switch between landscape
and portrait modes with ease, and display any type of content with
clarity and impact. No matter how you look at it, the Mini & COB
LED display delivers stunning visuals.
Direct View Small Pixel Pitch Options:
0.93mm
1.25mm
1.53mm
1.86mm

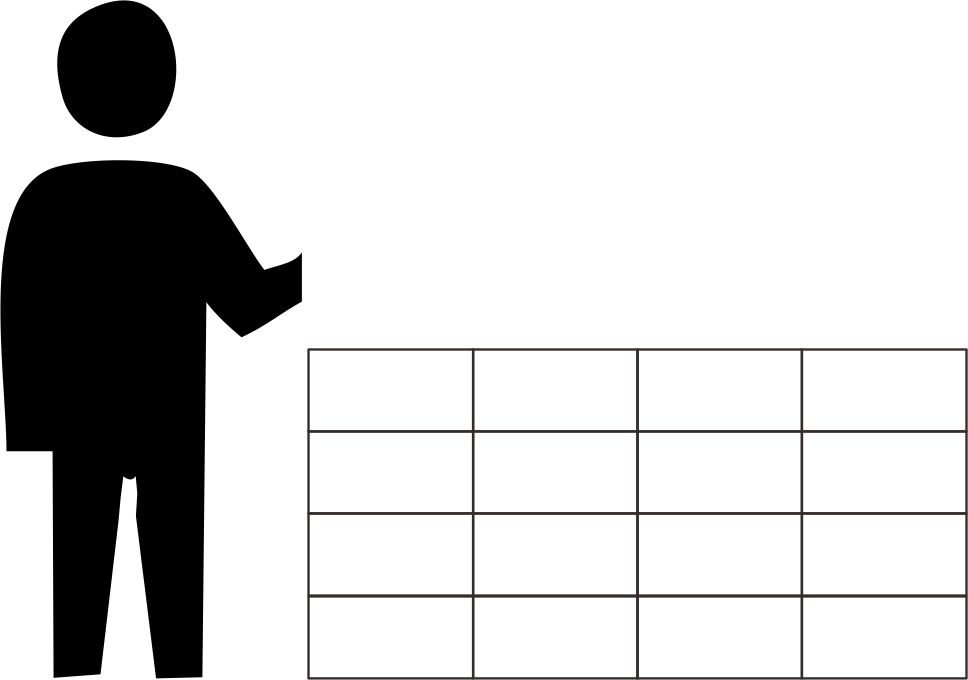

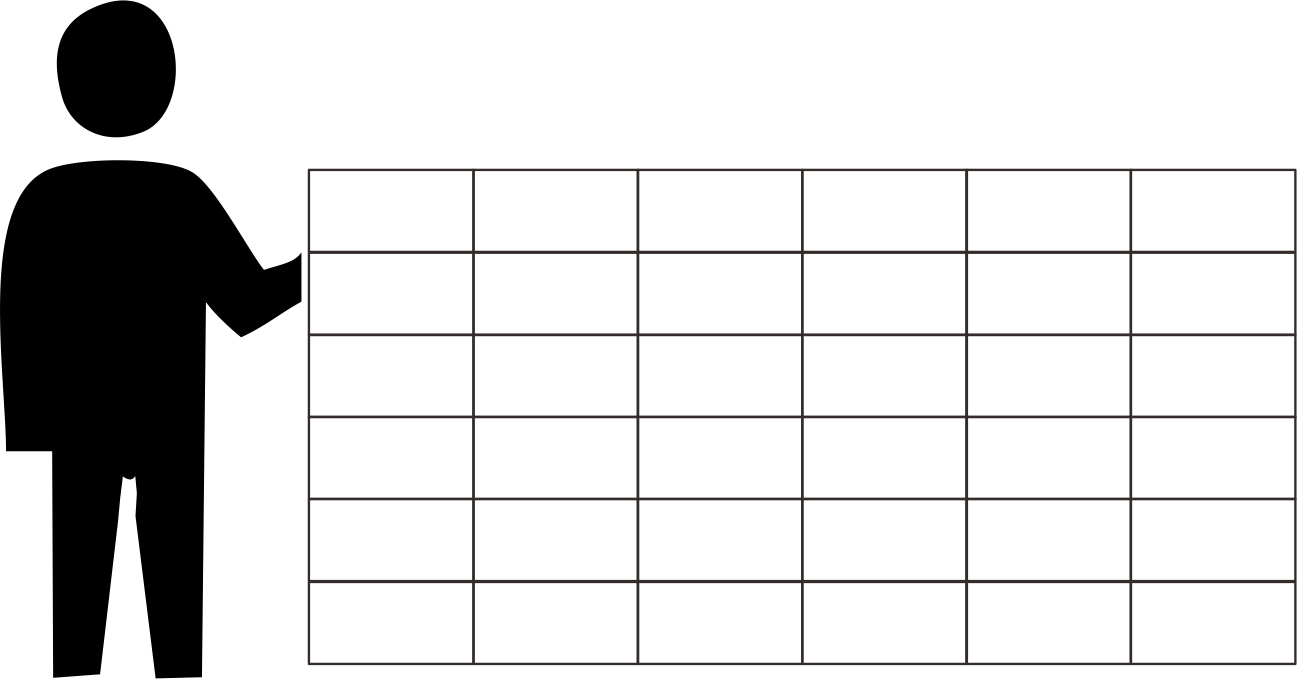

Standard Spec Size Options:
Above standard sizes that near to 16:9 aspect ratio TV size, the standard resolution of quarter HD, standard HD, Full HD, UHD can be easily achieved with just a few panels Perfect replacement for traditional LCD splicing screens without changing the original installation structure. Ultra-Wide Color Gamut for Vibrant Colors

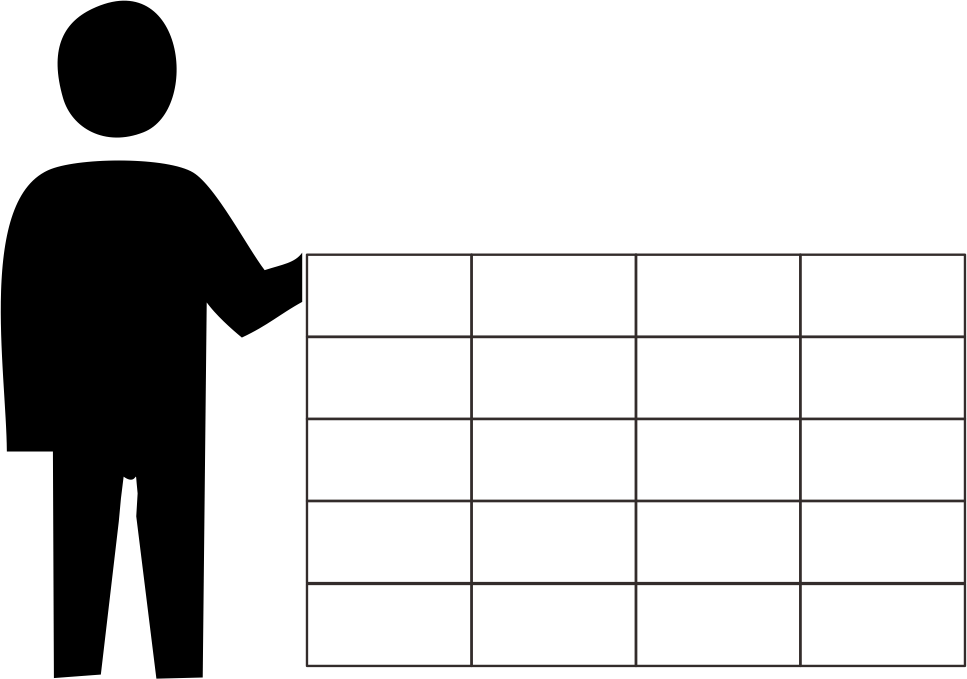

RGB-44 Full color Programmable LED SIGN 50X25”
RGB-54 Full color Programmable LED SIGN 50X31”
RGB-55 Full color Programmable LED SIGN 63X31”
RGB-65 Full color Programmable LED SIGN 63X38”
RGB-66 Full color Programmable LED SIGN 63X38”
Want something other than COB? We have many tech options available. Contact us.Multiple Length and Width,Options from small rack to the biggest one! We also support customization sizes.

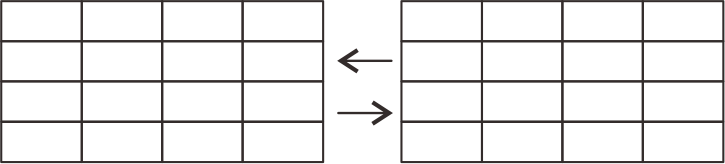

Imagine creating more possibilities
Combine two screens to form…

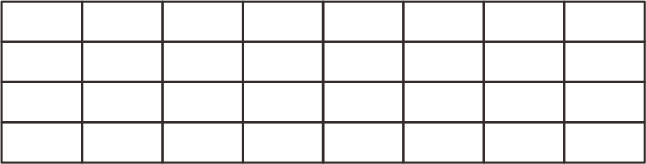

One seamless screen.
Watch-LED’s standard LED display can be used as a display alone or spliced into a large screen. Using the bezel-less modular design , it has no visual black seam in the splicing. They are able to be configured in many different sizes and shapes.
Flexible Installation & Usage type:fixed, portable,Lift display cabinet

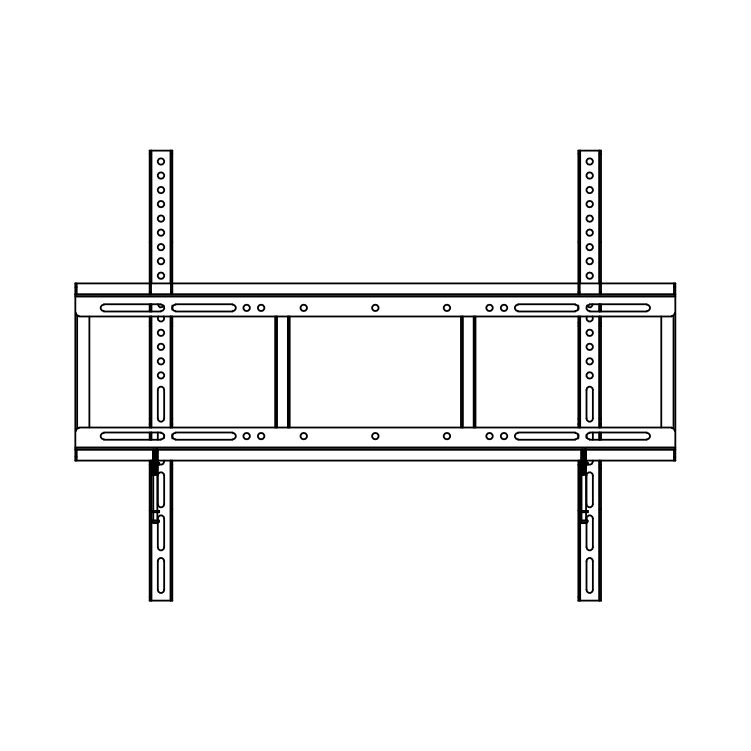

Wall Mount Bracket
Mounting Fixed

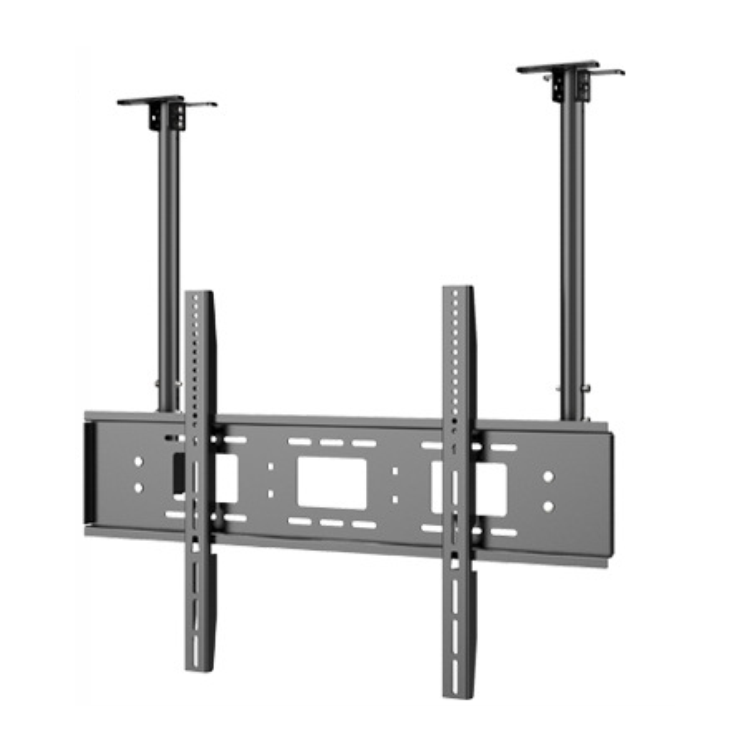

Ceiling Mount
Adjustable Bracket
Mobile Metal

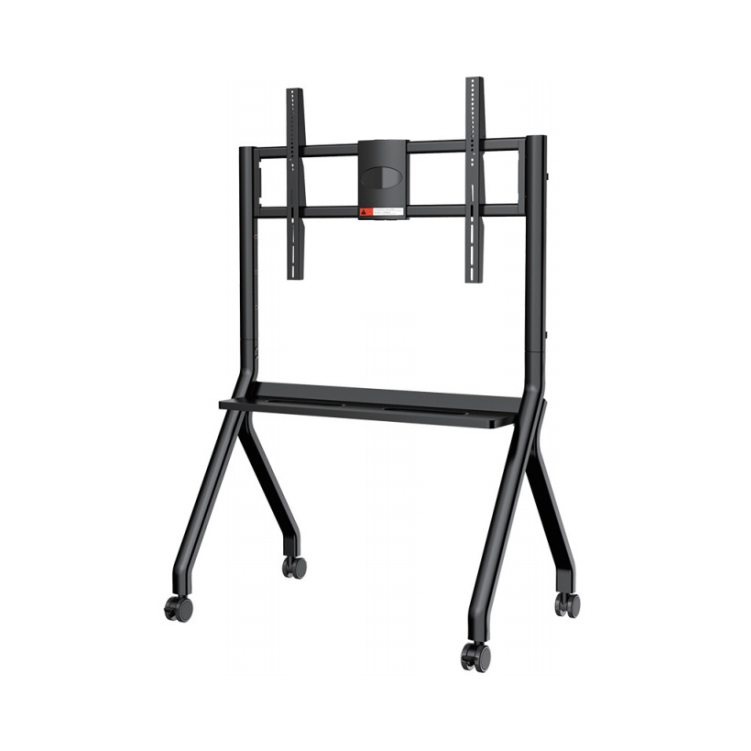

Stand With Wheels
Wooden or metal

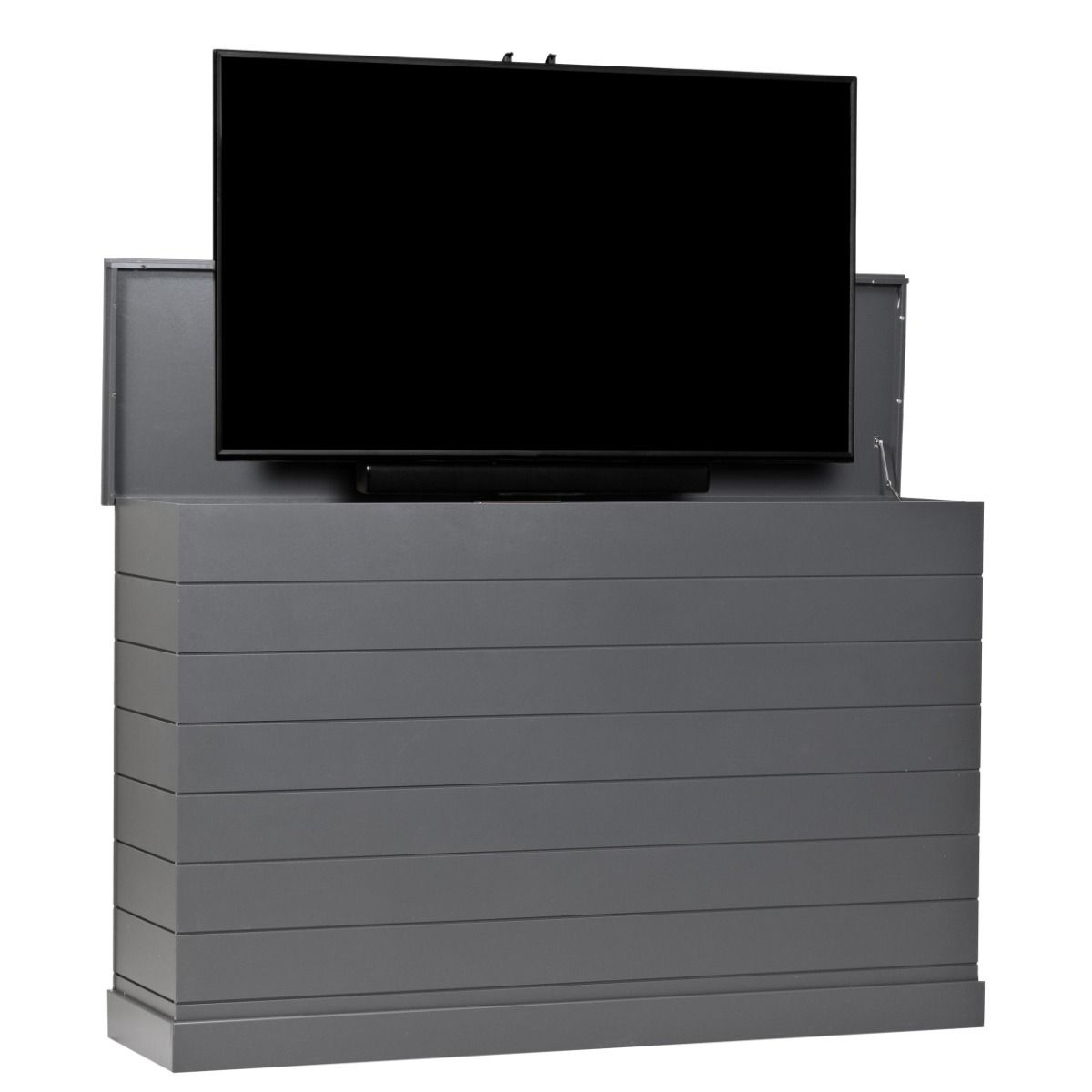

Mobile lifting cabinet
Small Pitch Mini LED and COB LED
In the modern world, LED technology is everywhere. These standard LEDs usually measure 1000 microns (0.04 inches) across, and are used in a variety of applications. As the science has developed, however, even more refined versions of this technology have been created. Mini LEDs? and COB LEDs function similarly to standard LEDs, but on a much smaller scale. Mini LEDs tend to measure 200 microns across, while COB LEDs can be as small as 100 microns, or 0.004 inches, across. While COB LEDs represent the theoretical optimization of LED technology, the mini LED serves as a transitional technology between standard LEDs and COB LEDs. They promise substantial gains in performance from standard LEDs, while being much easier to produce than COB LEDs.
Cloud based Multi-screen control
1, Our LED systems can be controlled and programmed via Cloud.
2, Users can access the Internet through the management computer (PC) and mobile APP, log in to their own account, and can manage the display screen centrally and remotely.
3, For remote locations without an internet connection, we can help build cloud for hundreds of led display with intelligent group management system.
4,All programs for all led display could be uploaded and changed at the same time via cloud. It’s totally wireless and remote.
5, Through the platform, users can upload and schedule content on the LED screens, monitor and analytics the performance of the displays in real-time, and receive alerts if any issues arise.
Communication Options
1.On-site management: Wi-fi connection: the mobile phone or laptop connects to the Wi-fi of the LED display Internet connection: Standard TCP/IP ,Cat 5/6 cable or USB key connect LED sign to your computer, laptop directly.
2.Wireless: POE connection: Expand your network to where there are no power lines or outlets 4G controller: For remote locations without an internet connection, best for controlling outdoor or many signs from far distance
Need a custom solution for your project ?
