Replacing LCD with Direct View Small Pitch LED digital signage for window display.We help retailers turn storefronts into high-impact digital experiences.Traditional LCD signage struggles under sunlight, wears out quickly, and limits visibility.

LED All In One

Direct-view small pitch LED

What is COB LED Module

COB refers to Chip on Board, which means the LED lighting-emitting chips will be directly mounted on the PCB board precisely. The light-emitting LED chips are connected to the driver components on the board through special media with high protection ability. Although it sounds difficult to understand, simply put, COB LED display is to achieve 4K, even 8K, 16K large LED display screen better as it can break limitation of pixel pitch of SMD LEDs to achieve higher pixel density.Within the range from 0.5mm to 3.3mm, there are COB (Chip-on-Board) small pixel pitch products available with increments of 0.1mm.

Focus on small pitch LED Hot Sell Standard size
Near to standard size 55″,65″,75″,86″,98″

The Fine Pitch Direct View LED All In One combine the best quality LED technology on the market with a sophisticated Android based PC. This provides an integrated solution for most cases without the need for messy cables or additional devices.

LED Standard Panel, LED All in One, Standard combination of Pixel pitch and size

Item No.size: WxHxTcm /inchResolution:  WxH pixel
P0.93RGBP1.25RGBP1.53RGBP1.86RGBP2RGB
RGB-44128x64x7cm50.4×25.2×2.8″1376×6881024×512832×416688×344640×320
RGB-54128x80x7cm50.4×31.5×2.8″1376×8601024×640832×520688×430640×400
RGB-55160x80x7cm63×31.5×2.8″1720×8601280×6401040×520860×430800×400
RGB-65160x96x7cm63×37.8×2.8″1720×10321280×7681040×624860×516800×480
RGB-76192x112x7cm75.6×44.1×2.8″2064×12041536×8961248×7281032×602960×560
RGB-87224x128x7cm88.2×50.4×2.8″2408×13761792×10241456×8321024×6881120×640

Technical specification

Pixel Pitch P0.93P1.25P1.53P1.86P2
EncapsulationSMDSMDSMDSMDSMD
Brightness(nits)600700700700700
View Angle (H/V)170° /160°
Display Weight
Frame rate(Hz)60
Refresh rate (Hz)3840
Conventional power (W/㎡)400-600W
Gray Scale (bit)14~16
Input VoltageAC110V~AC220V @ 50Hz / 60Hz
Operating Temperature -10~40 ℃
Operating Humidity10%~90%
CabinetMetal front / rear access cabinet
Build in systemWindows or Android OS Optional
Touch SystemRemote control /Touch panel(optional)
InterfaceHDMI×3, 3.5×1,USB3.0×1, USB2.0×1,RJ45×1
Video InputHDMI IN x 2
Audio OutputHDMI Out x 1, 3.5mm Earphone x 1
Audio SystemBuilt-in 2x15W speakers
Data Input/OutputUSB 3.0 x1, USB 2.0 x3
ConnectivityWLAN x 1, Wi-Fi
Warranty3 years Limited Warranty

COB LED VS LCD

COB LED is specially designed with multiple LED chips tightly attached to one surface, creating more uniform light and more energy saving. This results in high brightness, vivid color and long life. Highly energy-efficient, especially for high brightness indoor applications.
LCDs require an external light source to make the liquid crystals work that means they are less bright, limited viewing angles and slow response time.
LCD screens are suitable for office applications, home entertainment, where color and image details need to be optimized. If you need high brightness and good performance in bright environments, COB LED screens will be a better choice.
COB LEDs are generally more expensive due to their advanced technology, but their performance and reliability is good choice for premium applications.

Feature Description of COB LED all in one

-Highly durable, protection against moisture, oxidation, dust, UV, and impacts
-COB technology delivers vibrant, high-contrast images with excellent color reproduction due to high packaging density and uniformity.
-Provides a wider viewing angle (175°–180°) with minimal color or brightness distortion

  • High Brightness, brightness sensor
  • High refresh rate 3840Hz
  • Easy operate interface, multi-installation
  • One-button start, wireless screen projection, USB plug and play;
  • Simple and generous appearance, rich external interfaces
  • Lightweight high strength aluminum design, seamless border less

PH0.9/1.25/1.53 HD LED All In One

High-Resolution Display

High-resolution LED All in One can display images, text, and videos in high definition. High-end PH0.9/1.2/1.5/1.6 /1.8/ 2 /2.5, it covers the mainstream pixel pitches on the market, meeting the display needs of various application scenes. It features high performance and good color rendering, can show a smooth and clear picture.

Standard size LED All in One

Modular design, it has no visual black seam in the splicing. LED All in One Near to LCD standard size 55″,65″,75″,86″,98″, come in an option of sizes from 110” to 175” to help create the perfect display. We can also customize your own size according to your content and space.

Easy Content Update

Edit the contents under the software through computer, laptop, mobile phone etc. Ability to update content remotely. Support text, animation, video, clock, temperature etc. Regular updates ensure your messaging remains fresh and appealing.

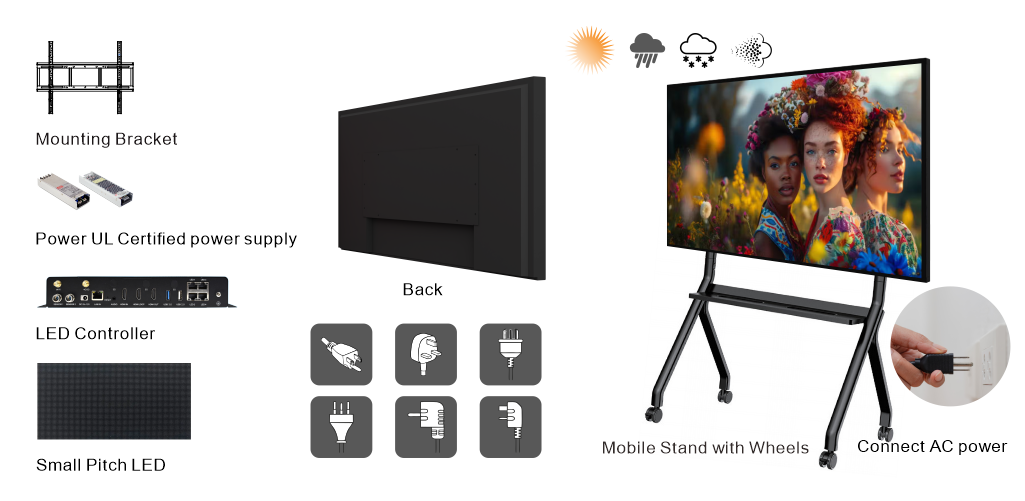

Mountable and Mobile Options

Wall Mount Full Motion Tilt Swivel LED Bracket offers a relatively simple design. It’s lightweight but durable, and flexible enough to accommodate a wide range of screen sizes and weights up to 400lbs. The height adjustable ceiling hanging mount is the solution to your limited wall space.Height Adjustable moving Stand – The mobile display stand can adjust its height. It can be stationary or mobile according to your wishes.

Portable With Convenient Stands

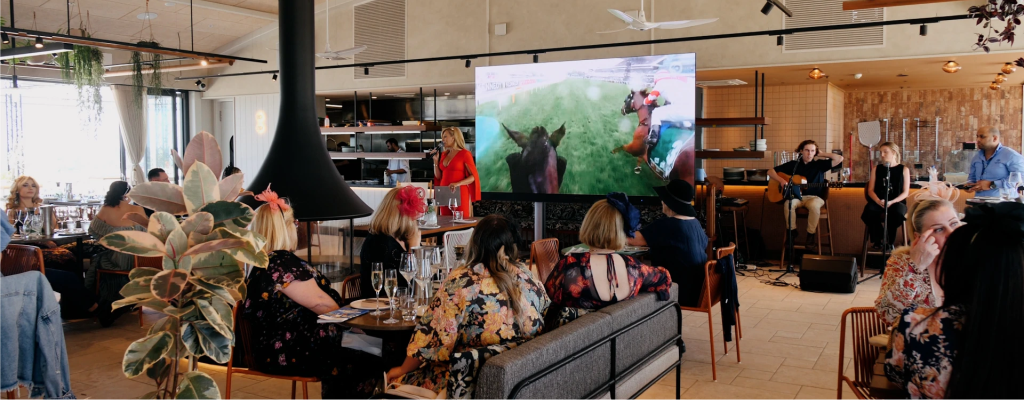

Our LED All in One screen has stand with wheels. It’s easier to move, making them ideal for use in multiple areas during the day and adapting to changing needs with ease. which would be a great choice for restaurants, hotels, cafe shops, etc.

Versatile Applications

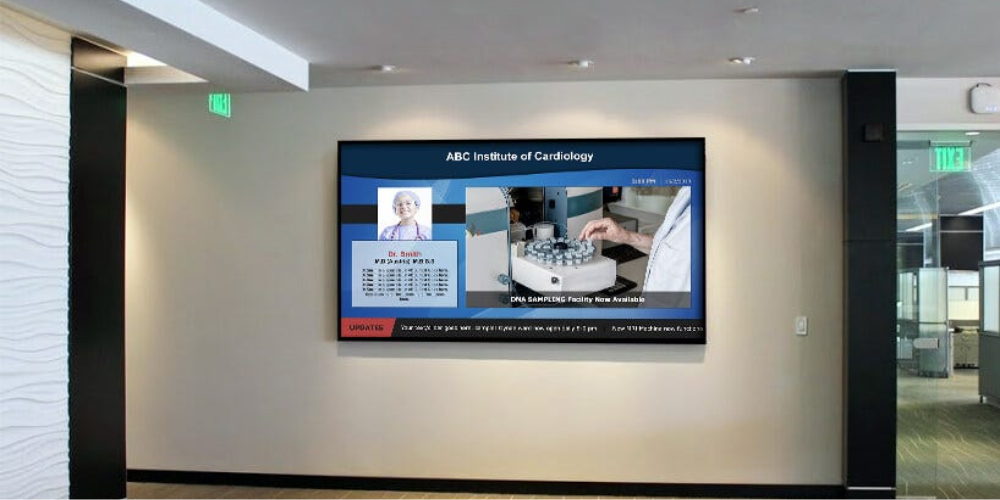

Ideal for various settings, it is often used for advertising and promotional purposes in high-traffic areas such as retail stores, exhibitions, and public places. The display is slim, lightweight, and portable, making it easy to install and move. High brightness and strong contrast allow everyone to see it clearly from a distance.

.

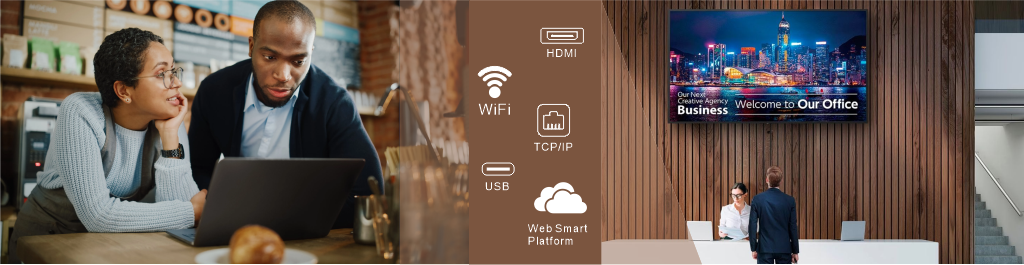

Cloud based Multi-screen control

1, Our LED systems can be controlled and programmed via Cloud.
2, Users can access the Internet through the management computer (PC) and mobile APP, log in to their own account, and can manage the display screen centrally and remotely.
3, For remote locations without an internet connection, we can help build cloud for hundreds of led display with intelligent group management system.
4,All programs for all led display could be uploaded and changed at the same time via cloud. It’s totally wireless and remote.

Why choose Our Direct View Small Pitch LED

Indoor High Resolution Module

Pixel Pitch P0.93P1.25P1.53P1.667P1.86
EncapsulationSMDSMDSMDSMDSMD
Module size  WxH32x16cm32x16cm32x16cm32x16cm32x16cm
resolution ratio344x172dots256x128dots208x104dots192x96dots172x86dots
Brightness(nits)600700700700700
Best Viewing distance0.9m~15m (3 ~49ft)1.2m~15m (4~49ft)1.5m~20m (5~66ft)1.6m~25m (5.5~82ft)1.8m~25m (6~82ft)
Driving method scan1/44scan1/64scan1/52scan1/48scan1/43scan
