Replacing LCD with Direct View Small Pitch LED digital signage for window display.We help retailers turn storefronts into high-impact digital experiences.Traditional LCD signage struggles under sunlight, wears out quickly, and limits visibility.
Display Type: Window/Outdoor
Material of Cabinet: Aluminum
Pixel Pitch: P2.5/P3.076/P4/P5/P6.67/P8/P10
Best Viewing Distance: 8m (26ft)～30m (98ft)
USB / NET/ WIFI connection through PC or mobile phone
Content creation software
Brightness sensor optional
Multi installation way
3 years Limited Warranty
Customized size available to fit your space and vision
Professional Front maintain LED Display
Front And Rear Service LED Display

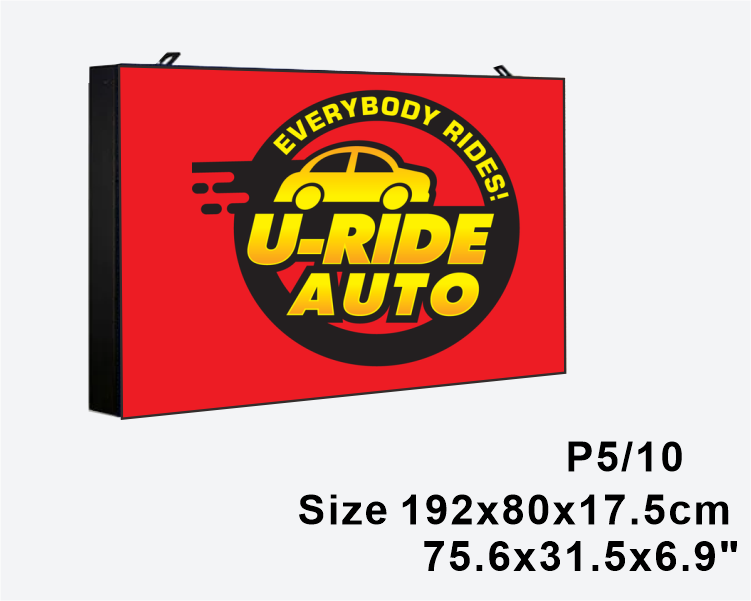

Standard Size LED digital signage 192x80x17.5cm / 75.6×31.5×6.9″
| # RGB-56 | Technical Specifications | |
| Pixel Pitch | P5RGB | P10RGB |
| LED Lamp | SMD | SMD |
| Resolution (WxH) | 384×160 | 192×80 |
| Brightness (cd) | 5500 or more | 5500 or more |
| Display size | 192x80x17.5cm / 75.6×31.5×6.9″ | |
| View Angle (H/V) | 160° /140° | |
| Refresh Rate | 1920Hz /3840 Hz | |
| Max power consumption (W/㎡) | 900W | |
| Display weight | ||
| Programming | USB / NET/ WIFI connection through PC or mobile phone | |
| Cabinet | Metal front / rear access cabinet | |
| Frame rate(Hz) | 60 | |
| Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | |
| Lamp Life | 100000+ Hours | |
Direct View LED Feature
The brightness of an LED display is usually expressed by a numerical value in cd/ or nit(s), which refers to the luminous intensity per square meter when the display is working normally. The suitable brightness
of an LED screen depends on the application scenarios to a great extent. In general:Indoor Brightness: 1000-1500 nits is enough for most indoor use Outdoor Brightness at close viewing, shade or sunset: 3500-4000 nits Outdoor Brightness with direct sun: up to 5,000 + nits should be enough in most situations For outdoor applications, the brightness
can be automatically adjusted according to the brightness of the light after adding light sensor to achieve the most suitable brightness for viewer.
The optimal viewing distance is typically 2-3 times the pixel pitch number in meters. For example, a pixel pitch of 10 would require at least a distance of 20 -30meters to experience optimal detail. Pixel pitch affects both viewing distance and perceived visual performance of LED displays.The minimum viewing distance for P10 is 10m and the best viewing distance is 20m. So, if people watch it from 10m to 50m away, they can see an acceptable image quality with a fading level of pixilation from 10m to 20m and a very good image quality after 20m. So you may want to increase the image quality using P8 or even P6 module for close range. But If the viewing distance was from 20m to 50m, there was no point to use smaller pixel pitch with higher resolution. Because, the viewing distance was already more than best viewing distance of P10.So, P10 is suitable for any outdoor application with viewing distance of 10m and more. P8 or P5 can also be used if target audiences are in closer distance.
1.Edit the contents under the software through computer, laptop, mobile phone etc.
2.Support text, animation, video, clock, temperature etc..
3.Time, Brightness control
4.Setting on/off times
5.Content creation and schedulling
6.Playback from USB drives
7.Network configuration
1.On-site management:
Wi-fi connection: the mobile phone or laptop connects to the Wi-fi of the LED display
Internet connection: Standard TCP/IP ,Cat 5/6 cable or USB key connect LED sign to your computer, laptop directly.
2.Wireless:
POE connection: Expand your network to where there are no power lines or outlets
4G controller: For remote locations without an internet connection, best for controlling outdoor or many signs from far distance
1, Our LED systems can be controlled and programmed via Cloud.
2, Users can access the Internet through the management computer (PC) and mobile APP, log in to their own account, and can manage the display screen centrally and remotely.
3, For remote locations without an internet connection, we can help build cloud for hundreds of led display with intelligent group management system.
4,All programs for all led display could be uploaded and changed at the same time via cloud. It’s totally wireless and remote.
5, Through the platform, users can upload and schedule content on the LED screens, monitor and analytics the performance of the displays in real-time, and receive alerts if any issues arise.
1, Boost your branded marketing and promotions with a beautifully engaging business video.
2, The led screen supports almost all the most usual formats: jpeg, mov, mp4 etc..
3, Many beginner-friendly free online video maker such as Canva, Poster my Wall, Unsplash that helps to creat stunning videos in minutes.
4, Select basic layer image from the available free templates and professional layouts with drag- and – drop feature to design your animated video
5, Easily edit and add elements: add your design elements, designed text or upload media from 3rd party
6, We can help to program your sign, to help you create unique and quality content on the display.
Hot Sell Standard size
Outdoor LED Sign Cabinets are available in different formats-Light Box Signage, Wall Signs, Monument Signs and Pole (often called Pylon) Signs. Watch-LED has years of experience in designing and manufacturing a wide variety of Outdoor Sign Cabinets.
Our signs come in a variety of sizes, we can also customize to meet your requirement whether you need a billboard or a smaller sign for your store.
LED signs have been proven to increase sales by 15% to over 50%. LED Signs are highly visible, efficient, easy to program and maintain.
LED SIGN Standard combination of Pixel pitch and size
| LED height | LED Width ft | Pixel Pitch | Item No. | Pixel(dots) HxW | Usage |
| 2.1ft H | 4.2ft | P2.5/3.076/4/5 | RGB-44P | 64×128 | Small size for monument sign |
| 5.25ft | RGB-45P | 64×160 | |||
| 6.3ft | RGB-46P | 64×192 | |||
| 2.62ft H | 5.26ft | P2.5/3.076/4/5 | RGB-55P | 80×160 | |
| 6.3ft | RGB-56P | 80×192 | |||
| 3.2ftH | 5.26ft | P3.076/4/5/6.67 | RGB-65P | 96×160 | Size for monument or low pylon sign |
| 6.3ft | RGB-66P | 96×192 | |||
| 7.35ft | RGB-67P | 96×224 | |||
| 8.4ft | RGB-68P | 96×256 | |||
| 9.45ft | RGB-69P | 96×288 | |||
| 11.6ft | RGB-611P | 96×352 | |||
| 3.67ftH | 6.3ft | P4/5/6.67/8/10 | RGB-76P | 112×192 | Size for any business |
| 7.35ft | RGB-77P | 112×224 | |||
| 8.4ft | RGB-78P | 112×256 | |||
| 9.45ft | RGB-79P | 112×288 | |||
| 4.2ft H | 6.3ft | P5/6.67/8/10 | RGB-86P | 128×192 | Size for any business/ Wall sign |
| 7.35ft | RGB-87P | 128×224 | |||
| 8.4ft | RGB-88P | 128×256 | |||
| 4.72ft H | 6.3ft | P6.67/8/10 | RGB-96P | 144×192 | |
| 7.35ft | RGB-97P | 144×224 | |||
| 8.4ft | RGB-98P | 144×256 | |||
| 9.45ft | RGB-99P | 144×288 | |||
| 5.25ft H | 6.3ft | P8/10 | RGB-106P | 160×192 | |
| 7.37ft | RGB-107P | 160×224 | |||
| 10.5ft | RGB-1010P | 160×320 | |||
| 5.77ft H | 7.37ft | P8/10 | RGB-117P | 176×224 | Large size for Pylon sign |
| 9.45ft | RGB-119P | 176×288 | |||
| 6.82ft H | 10.5ft | P10 | RGB-1310P | 208×320 | |
| 7.87ft H | 12.6ft | P10 | RGB-1512P | 240×384 | Very large size for Billboard display |
| 8.92ft H | 14.7ft | P10 | RGB-1714P | 272×448 | |
| 10.5ft H | 16.8ft | P10 | RGB-2016P | 320×512 | |
| 12.07ft H | 18.9ft | P10 | RGB-2318P | 368×576 | |
| 13.12ft H | 21ft | P10 | RGB-2520P | 400×640 |
LED Module Parameter
Outdoor waterproof module 12.6Wx6.3H” (32Wx16Hcm)
| Pixel Pitch | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| Encapsulation | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Module size WxH | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm |
| resolution ratio | 128x64dots | 104x52dots | 80x40dots | 64x32dots | 48x24dots | 40x20dots | 32x16dots |
| Brightness(nits) | 5000 | 5000 | 5000 | 5500 | 6000 | 5500 | 5800 |
| Best Viewing distance | 8m (26ft) | 9.3m (31ft) | 12m (49.21ft) | 15m (49.21ft) | 20m (66ft) | 24m(78ft) | 30m (98ft) |
| Driving method | 1/16scan | 1/13scan | 1/10scan | 1/8scan | 1/6scan | 1/4scan | 1/2scan |
Outdoor front access module 12.6×12.6″(32x32cm),12.6Wx6.3H”(32x16cm),All module s in same sizes have same hole position
| Pixel Pitch | P3.91 | P4.81 | P5 | P6 | P6.67 | P8 | P10 |
| Encapsulation | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Module size WxH | 25x25cm | 25x25cm | 32x32cm | 32x32cm | 32x32cm | 32x32cm | |
| Module size WxH | 32x16cm | 24x24cm | 32x16cm | 32x16cm | |||
| resolution ratio | 64x64dots | 52x52dots | 64×64(32)dots | 40x40dots | 48×48(24)dots | 40x40dots | 32×32(16)dots |
| Brightness(nits) | 6000 | 6000 | 6000 | 6000 | 6000 | 6500 | 6500 |
| Best Viewing distance | 12m (49.21ft) | 14.5m (49.21ft) | 15m (49.21ft) | 18m(59ft) | 20m (66ft) | 24m(78ft) | 30m (98ft) |
| Driving method | 1/8scan | 1/7scan | 1/8scan | 1/5scan | 1/6scan | 1/5scan | 1/2scan |
Due to the design structure of 3 in 1, full-color SMD size is small, so the light-emitting area is small, and the black area is large, thus to improve the contrast of the LED display.
They can be extremely bright with crisp output, clear images, and true to color nature. It’s a cost-effective choice with superior quality for viewing, high resolutions and bright
images, making them great for indoor and outdoor signs and screens.
Its advantages include its low power consumption, high contrast, and wide viewing angle. It also has the ability to withstand harsh conditions, such as direct sunlight and
high temperatures.
Available pixel pitches: 0.93mm – 6mm, 8mm and 10mm
outstanding color blending at short viewing distance
We use the best quality of Nation star Led Lamp Gold Wire SMD
The front access led module is from 3.91mm to 20mm. Pixel pitch 6mm-10mm is better for far viewing distance and big sizes. Pixel pitch 3.91mm and 4.81mm is good for short viewing distance and small sizes. It’s suitable for locations where there is little to less space available for maintenance. Front service led module can be serviced and maintenance from the front. You just have to find the fault module and fix it from the front directly. This module also makes it easier and faster to assemble and disassemble the screen, which can save a lot of time and labor cost.

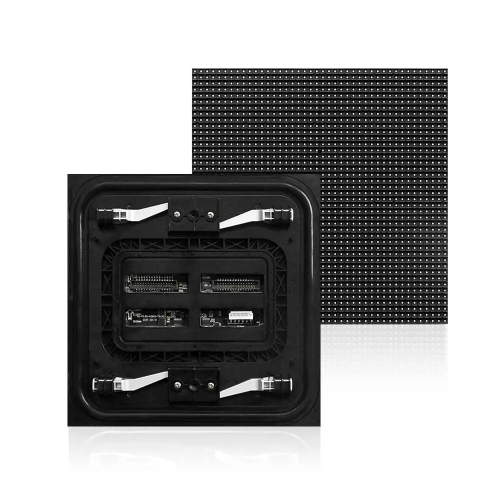

Front Access Led Module
Dual service LED module of front and rear design is an
effective full-color SMD 3 in 1 LED sign module with high
quality and high brightness. 320mm320mm and 250mm250mm are available. People usually use its
front maintenance function. Its easy to take the modules
with a hexagonal screwdriver. Disassemble steps in a few
seconds with special tool.
Ready to dive in and see what makes LED display?

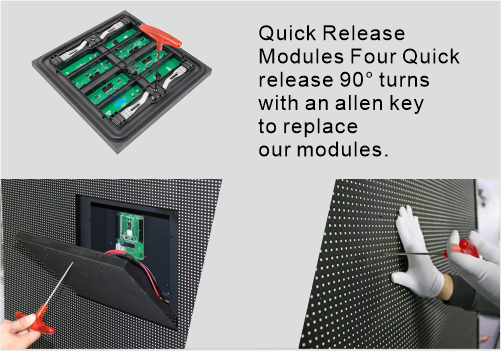

1: Insert the module removal tool into the corresponding
holes on the front of the module.
2, Rotate 90 degrees counterclockwise to unlock the module lock.
3, Take modules out of cabinet
4, Disconnect power and flat cable, checking inside components
and module
Our standard module size is 12.6×6.3″ (32x16cm) ,12.6×12.6″ (32x32cm). Same size modules have same physical size, you can upgrade the old LED displays made of our standard modules easily to higher resolution. All pitch resolution in same size can be changed easily.
Additional Information
Notes of installation
DO NOT weld any part of the sign cabinet or bracket. DO NOT drill holes into the LED sign cabinet, DO NOT put the LED sign cabinet into other enclosures. Don’t disassemble the product random(ask help for professionals)
Place bracket with the slotted holes against the wall, fasten the bracket to the wall using the 2 long screws and ensure that the bracket
is level before tightening. Attach the LED sign to the fixing bracket, fasten the angle iron on the sign (provided with sign) securely to the bracket with the stainless
screws provide.

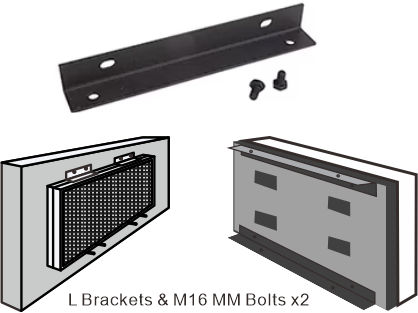

Main installing bracket Angle iron (2pcs included with the led sign)
Wall surface-mount led sign installation (Concrete
Anchor Bolt not included)
Each single-sided led sign attaches to a wall or other
vertical surface. The led sign will be attached with
hardware and angle clips.
Wall Embedded Installation
The whole LED display is embedded in the wall, and display plane and wall are at the same level.Minimum of 2″ ventilation space need to leave to allow cool air to be circulated.
LED Electronic connection

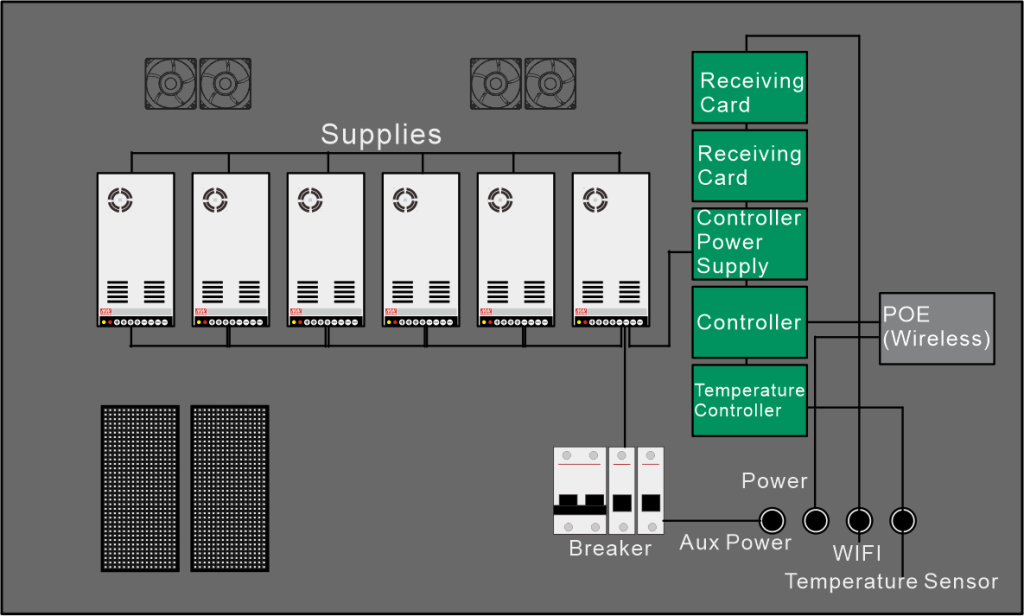

Outdoor Front Access Open LED Display
Outdoor Front Access LED Display

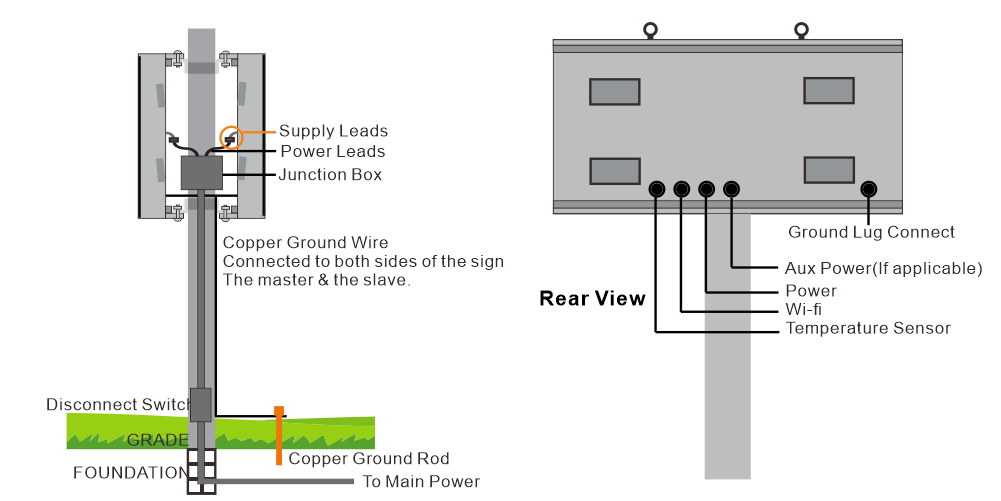

Electrical Installation Requirements
The following pages contain examples of LED cabinet and installation.
They are intended for reference use only, not as mandated drawing styles and layouts.
Connection instruction is available for specific Voltage, Amperage,
and number of cabinets connection.
Power cable connection:
Each sign has a power cable connection
Larger signs divided into several parts will have more than one power cable connection
Circuit breaker inside the LED display cabinet.
Main electrical connections should be done by a licensed electrician

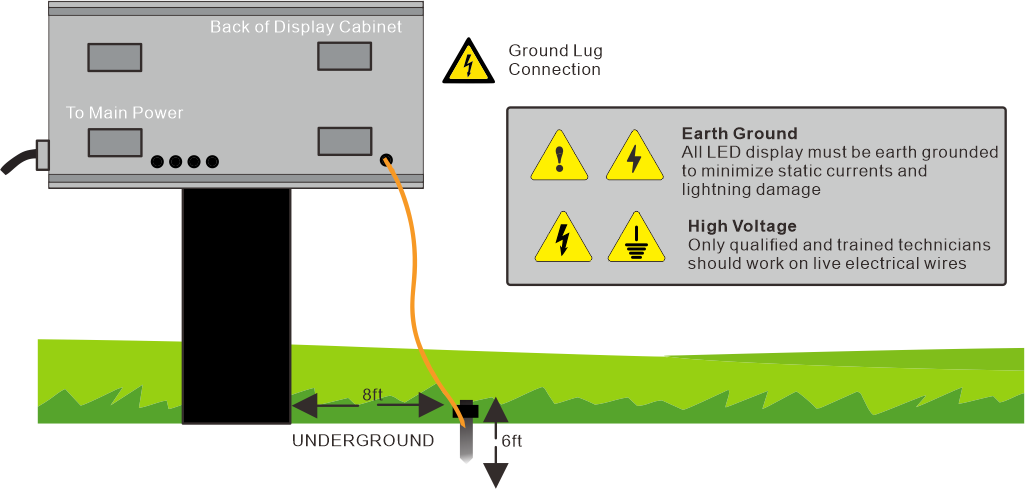

Grounding Requirements
The body and shell of the LED screen should have good grounding measures.
In general, lightning may hit the screen directly and then the lightning will be released into the ground by earthing device.
The grounding program should be considered according to specific situation. For example, when the display is set independently, the grounding system also should be set independently.A proper Earth Ground should be run from the sign, to a grounding rod 3/8″ diameter and 6′ long, ground rod must be completely buried.

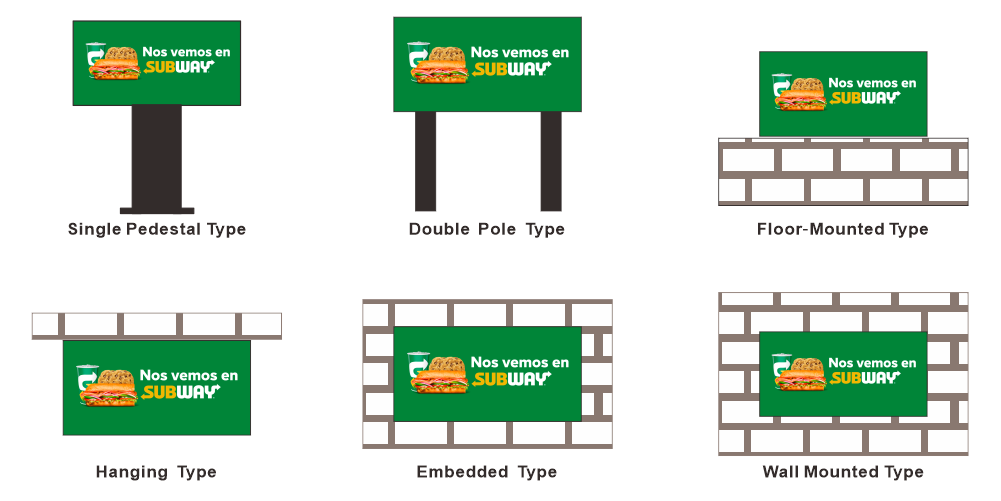

Main Installation Methods of LED sign
LED signs are Energy-efficient, durable, and highly customizable
To attract customers, you’ll need a kind of illuminated advertising signs. What types of signs for customize?
1, A Pylon sign is tall, towering sign. Their height depends on different factors, about 20ft to 80ft that ideal for attracting attention from far distance.

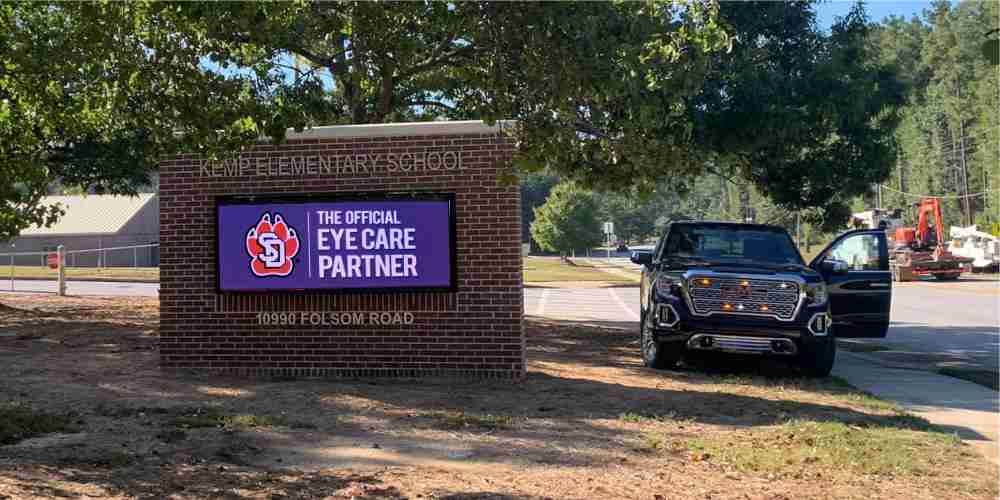

2, A monument sign is around 6″ to 12′” in height.
Both monument and pylon signs are located away from the main building. They are placed either at the property entrance or along the road so people can find the door.
3, A pole sign has an exposed pole with no cover or decoration. it’s cheaper and is less attractive than pylon signs and other types of monuments. Less material equals lest cost and less fabrication labor.

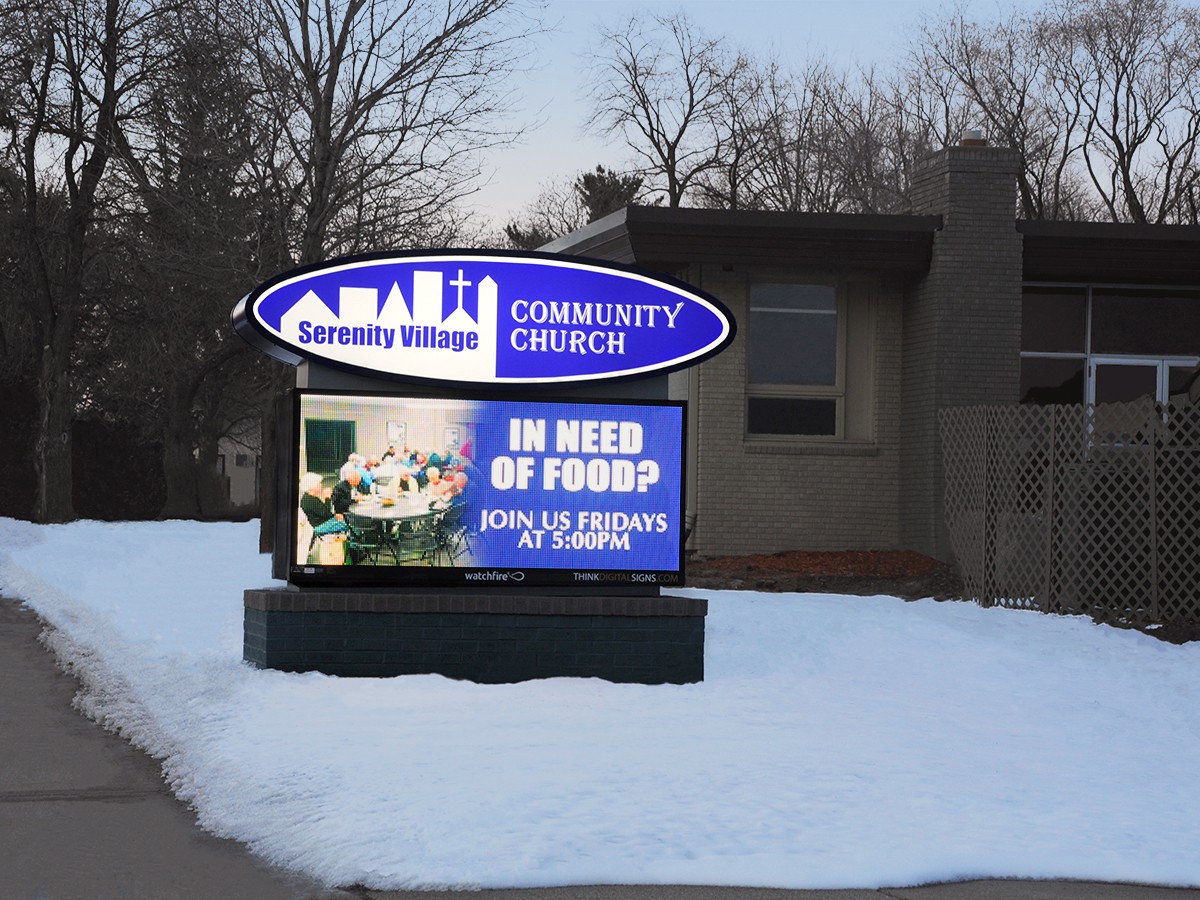

4, LED Light Box Signs (Cabinet Signs or Box Signs)
A typical led light box sign contains three main components; (1) the ID Cabinet, (2) the LED Sign, (3) the Pedestal.
5, Digital LED billboard: normally means outdoor led screen / display
6, Roadside led display: large digital screens located high-traffic locations such as cross-roads, highways, service stations, etc,to be seen at all times of the day and night
